51 47... Removing and installing/replacing left luggage compartment lid

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove warning triangle.

Lift handle (1) from socket mounting and fold luggage compartment lid (2) toward inside.

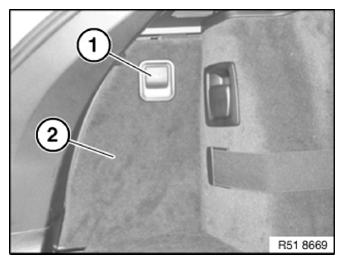

Fig 1: Identifying Handle And Luggage Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from socket.

Remove luggage compartment lid (2).

Replacement

Modify socket mounting.

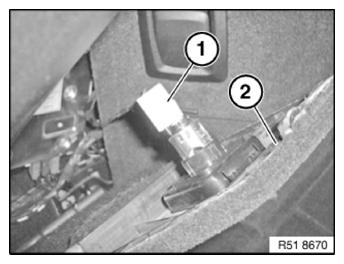

Fig 2: Identifying Plug Connection And Luggage Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.
