64 11 868 Removing and installing/replacing actuator drive for defrosting flap

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRAL INFORMATION DISPLAY

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATING AND AIR-CONDITIONING UNIT

Release screws (1).

Remove actuator drive (2) and unlock and disconnect plug connection (3).

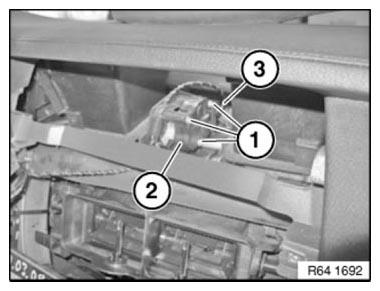

Fig 1: Identifying Actuator Drive, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Re-address flap motors
