64 11 830 Replacing servodrive for middle left ventilation flap (High A/C system)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CENTRAL INFORMATION DISPLAY
- Remove trim panel for pedal assembly . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .
Position of actuator drive:
OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER
Release screws (1) and remove grounding cable.
Installation:
Replace screws (1).

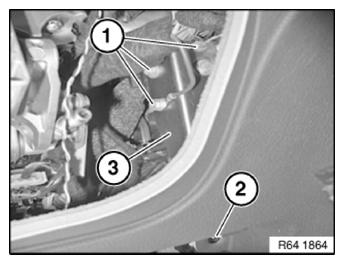

Release screw (2).
Take off holder (3).
NOTE:
For purposes of clarity, illustration shows removed support tube.

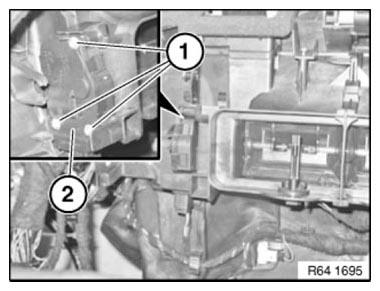

Release screws (1).
Remove servomotor (2) and unlock and disconnect associated plug connection.
Replacement:
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
