64 11 823 Replacing servodrive for right rear cabin air blending flap

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RIGHT GLOVEBOX WITH HOUSING

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screw (1).

Unfasten screws (2).

Installation:

Replace screws (2).

Take off holder (3).

Fig 1: Identifying Actuator Drives On Heater/Air Conditioner Screws

G09881542

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation:

Latching of connector piece (1) must be felt.

Fig 2: Removing Latching Of Connector Piece

G06886223

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove air vent duct (2).

Installation:

Ensure cable routing along air vent duct (2) is correct

Fig 3: Identifying Air Vent Duct And Screws

G06886224

Courtesy of BMW OF NORTH AMERICA, INC.

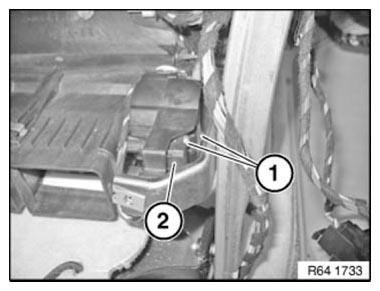

Release screws (1).

Remove servodrive (2) and unlock and disconnect associated plug connection.

Fig 4: Identifying Servodrive Screws

G06886229

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
