64 11 273 Replacing water valve for heater (N54, N55)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Repair work on the cooling system may only be carried out when it has cooled down.
Repair work on the cooling system may only be carried out when it has cooled down.
NOTE:
Disconnect coolant hoses on water valve.
Recycling
Coolant emerges when coolant lines are detached. Have a suitable collecting vessel ready.
Catch and dispose of escaping coolant.
Observe country-specific waste disposal regulations.
Necessary preliminary tasks
- Remove REAR LEFT CHARGE-AIR DUCT
NOTE:
Picture shows engine removed for purposes of clarity

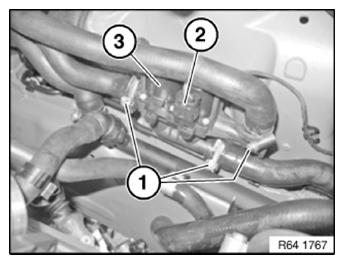

Release hose clamps (1) and detach coolant hoses.
Disconnect plug connection (2).
Pull water valve (3) upwards out of holders.
Installation note:
Do not mix up connections of coolant hoses.
Replace damaged coolant hoses!
Installation note:
Make sure rubber mount (1) and guide lug (2) are securely seated in holders (3) on wheel arch body.
After installation
- Fill and vent cooling system . See 17 00 005 DRAINING AND ADDING COOLANT (N55) or 17 00 009 CHECKING COOLING SYSTEM FOR WATERTIGHTNESS (N55, N63, N47 D20 O/T 1, N57 D30 U/O/T/S 0/1) and check for leaks.
