61 31 321 Removing and installing radio and A/C control panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

IMPORTANT: Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.

Necessary preliminary tasks:

Remove FRONT STORAGE COMPARTMENT
Remove CENTER CONSOLE TRIM

Release screws (1).

Remove radio and IHKA controls (2).

Unlock plug connections behind and disconnect.

IMPORTANT: Assign keypad depending on optional equipment .

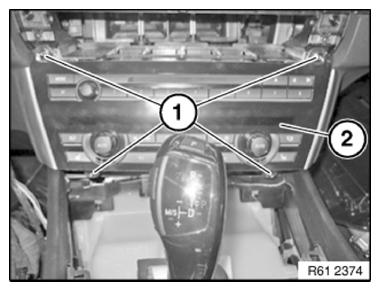

Fig 1: Identifying IHKA Controls Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
