51 16 150 Removing and installing/replacing front storage compartment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Open storage compartment (1).

Ideally, first unlatch left and right cover (2) by pulling it down then up on the marked locations. Then fold to the inside and remove.

Installation:

Retaining lugs of cover (2) of door trim panel must not be damaged.

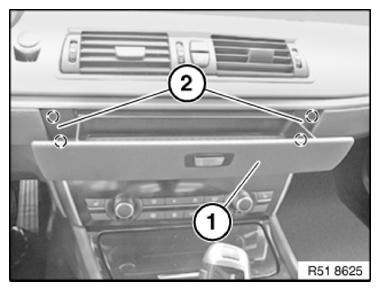

Fig 1: Identifying Retaining Lugs Of Cover And Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Pull out storage compartment (2) and put aside.

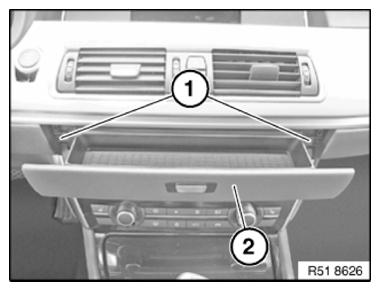

Fig 2: Identifying Screws And Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
