64 12 570 Replacing turbocharger coolant pump for auxiliary heating

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Repair work on the cooling system may only be carried out when it has cooled down.

Recycling

Coolant emerges when coolant lines are detached.

Have a suitable collecting vessel ready.

Catch and dispose of emerging coolant.

Observe country-specific waste disposal regulations.

NOTE: Clamp off coolant hoses.

Necessary preliminary work

Remove FRONT UNDERBODY PROTECTION
Remove ORNAMENTAL GRILLE IN BUMPER TRIM ON LEFT

NOTE: Graphic similar.

Release screws (1).

Remove lower left cover (2).

Fig 1: Identifying Left Underbody Cover Screws

G06886262

Courtesy of BMW OF NORTH AMERICA, INC.

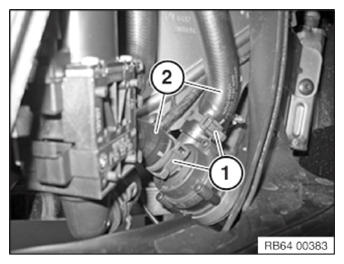

Release spring strap clips (1).

Detach coolant hoses (2).

Fig 2: Identifying Spring Strap Clips & Coolant Hoses

G09881589

Courtesy of BMW OF NORTH AMERICA, INC.

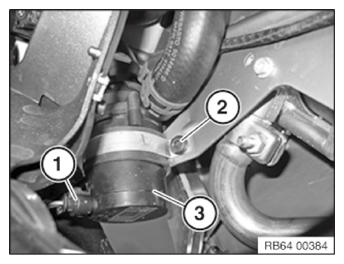

Unfasten plug connection (1) and disconnect.

Release screw (2) and remove retaining bracket.

Remove turbocharger coolant pump (3).

Fig 3: Identifying Turbocharger Coolant Pump Screw

G09881590

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Fill and vent cooling system and check for water leaks . See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT ; 17 00 039 BLEED COOLING SYSTEM AND CHECK FOR WATERTIGHTNESS (N52T, N53, N55) or 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATERTIGHTNESS (N63 B44 O 0) .
