64 12 160 Removing and installing or replacing complete independent heater with bracket

Recycling

Fuel escapes when fuel line is detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks

• Remove FRONT WHEEL ARCH COVER (FRONT SECTION)
• Remove FRONT UNDERBODY PROTECTION

Release screws (1).

Remove lower left cover (2).

Fig 1: Identifying Left Underbody Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

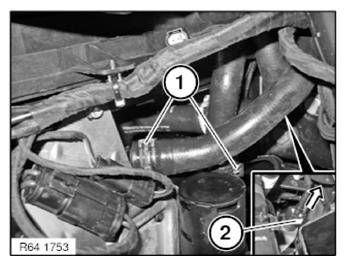

Release spring clamps (1) and detach coolant hoses.

Installation note:

Top up coolant and vent cooling system  . See 17 00 005 DRAINING AND ADDING COOLANT (N63) ; 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT or 17 00 039 BLEED COOLING SYSTEM AND CHECK FOR WATERTIGHTNESS (N52T, N53, N55) .

Unlock and detach fuel line (2).

Fig 2: Removing Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unfasten screws (2).

Lower independent heater (3).

Installation note:

Make independent heater (3) is correctly seated.

Fig 3: Removing Independent Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Release spring strap (1) and detach coolant hose (3).

Remove independent heater (3).

Fig 4: Identifying Independent Heater, Spring Strap And Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Until 09/2012, replace for diesel engines duplicate type label (1).

Fig 5: Identifying Diesel Engines Label

Courtesy of BMW OF NORTH AMERICA, INC.
