64 12 089 Removing and installing or replacing silencer

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT ASSEMBLY UNDERBODY PROTECTION

NOTE: Graphic similar.

Release screws (1).

Remove left underbody cover (2).

Fig 1: Identifying Left Underbody Cover Screws

G06886262

Courtesy of BMW OF NORTH AMERICA, INC.

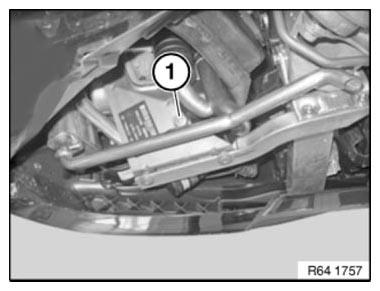

Unfasten screw (1)

Fig 2: Identifying Screw

G06886270

Courtesy of BMW OF NORTH AMERICA, INC.

For purposes of clarity, picture shows component removed.

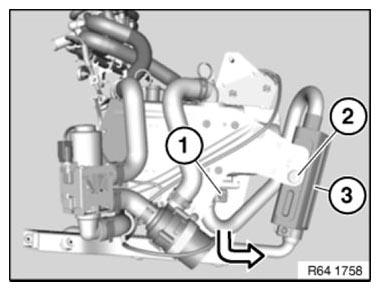

Release nut (1) and bolt (2).

Remove muffler/silencer (3) in direction of arrow.

Fig 3: Removing Muffler/Silencer Nut And Screw

G06886271

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove EXHAUST PIPE
