64 12 580 Removing and installing/replacing exhaust pipe

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove FRONT ASSEMBLY UNDERBODY PROTECTION

NOTE: Graphic similar.

Release screws (1).

Remove lower left cover (2).

Fig 1: Identifying Left Underbody Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

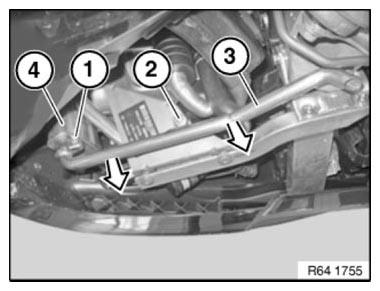

Slacken nut (1).

Release screw (2).

Withdraw exhaust pipe (3) in direction of arrow from silencer (4).

Installation note:

Make sure exhaust pipe (3) is correctly seated.

Fig 2: Identifying Exhaust Pipe, Silencer And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
