13 53 721 Replacing one injector, cylinders 1-4 (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Observe warning on cylinder head cover.
Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short-circuiting on dismantling).
Electric fuel pump starts up automatically when door is opened!
Carry out installation work on fuel system only with coolant temperature below 40 ° C.

IMPORTANT: Observe without fail the tightening sequences and tightening torques when reassembling.
Disregard of these requirements may result in leaks!

Recycling:

Fuel escapes when fuel lines are detached.

Catch and dispose of escaping fuel in a suitable container.

Observe country-specific waste disposal regulations.

IMPORTANT: Adhere to conditions of absolute cleanliness when working on the high-pressure fuel system.
Introduced contaminants can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of dirt before removing lines or separate components.
Use only fluff-free cloths.
Seal all fuel system openings with protective caps or plugs.
High pressure lines may be rescrewed a maximum of 10 times.

Necessary preliminary work

Remove ignition coils, cylinders 1-4. See IGNITION COILS (N63) or IGNITION COILS (N63 B40/B44 O1) .
- Ignition coils must not be fouled by fuel!
  The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail! It is therefore essential to protect the spark plug slot against ingress of fuel with a cloth!
- Before installing ignition coils, clean spark plug slots with compressed air.
- Make sure the spark plug slot is absolutely clean.
Drain off AIR CONDITIONING SYSTEM
Remove right INTAKE PORT
Remove REAR RIGHT SUSPENSION CROSS-BRACE
Remove REAR UNDERBODY PROTECTION
In all-wheel-drive vehicles:
Remove STIFFENING PLATE

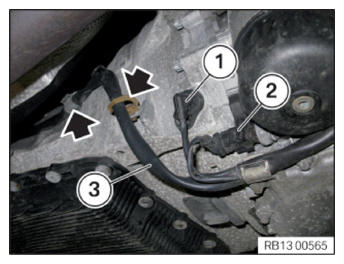

Unlock and detach plug connections (1 and 2).

Release transmission wiring harness (3) from marked clamps.

Fig 1: Identifying Wiring Harness And Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

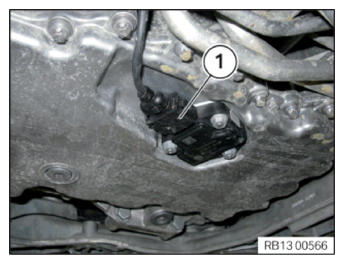

Unfasten plug connection (1) and disconnect.

Slide transmission wiring harness as far as possible in an upward direction.

Fig 2: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

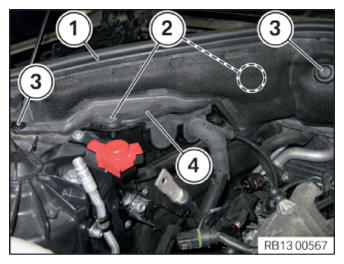

Pull gasket (1) in the operating range off in an upward direction.

Unfasten screws (2).

Release screws (3).

Tightening torque 51 71 3AZ .

Remove right bulkhead side section (4) upwards.

Fig 3: Identifying Right Bulkhead Side Section, Gasket, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

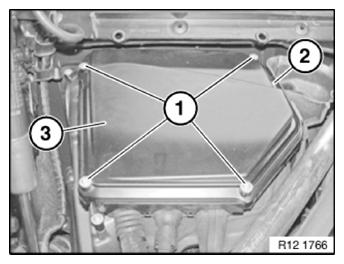

Release screws (1).

Tightening torque 12 90 4AZ .

Release clamp (2).

Remove lid (3) from auxiliary box.

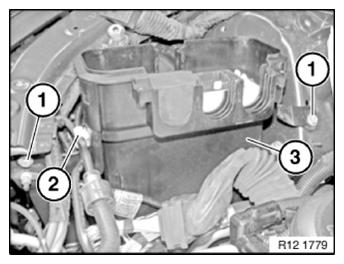

Fig 4: Identifying Auxiliary Box Lid, Clamp, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

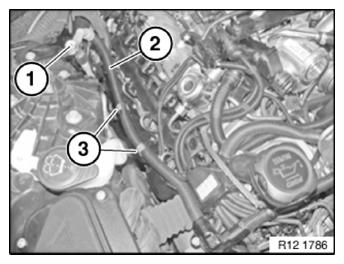

Unclip grommet hold-down device (1).

Release wiring harness (2) from bulkhead.

Unlock connector (3) and remove.

Fig 5: Identifying Grommet Hold-Down Device, Wiring Harness And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

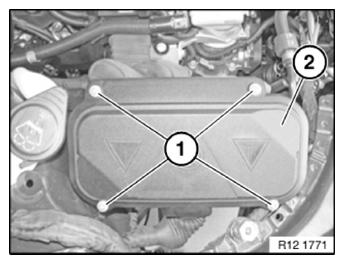

Release screws (1).

Tightening torque 12 90 2AZ .

Remove electronics box cover (2).

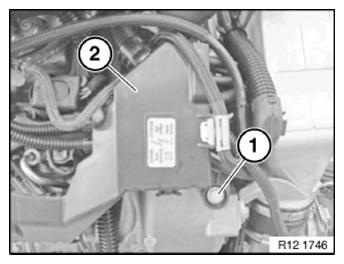

Fig 6: Identifying Electronics Box Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

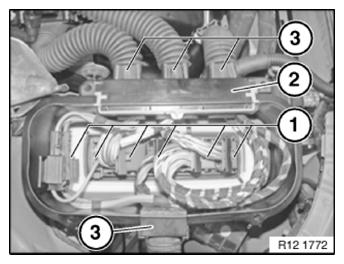

Unlock all connectors (1) from control unit and disconnect.

Unclip grommet hold-down device (2) and remove.

Detach rubber grommets (3) from electronics box. Place wiring harnesses to the side.

Installation note:

Make sure grommets are correctly seated (watertightness).

Fig 7: Identifying Grommet Hold-Down Device, Rubber Grommets, And Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

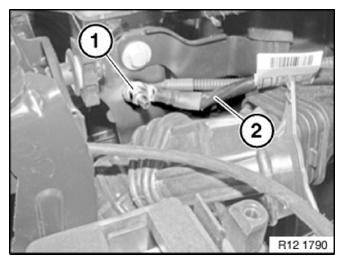

Slacken nut (1).

Tightening torque 12 51 1AZ .

Detach earthing cable (2).

Fig 8: Identifying Earthing Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

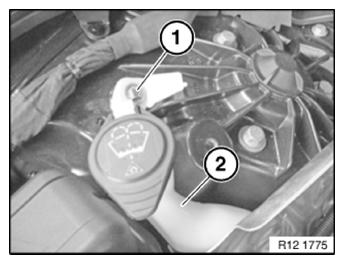

Release screw (1).

Lay filler neck (2) for windscreen washer fluid to one side.

Fig 9: Identifying Washer Fluid Filler Neck And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 90 1AZ .

Unclip coolant lines at clamp (2) from electronics box.

Fig 10: Identifying Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

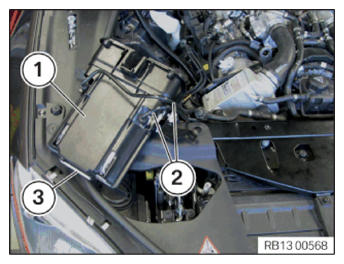

Carefully feed out the electronics box (1) complete with control unit upwards and place to one side.

IMPORTANT: Risk of damage! Do not under any circumstances kink or bend coolant lines (2).

Installation note:

When installing the electronics box (1), insert guide (3) on engine support.

Fig 11: Identifying Electronics Box And Coolant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Open cover.

Release screw (1).

Tightening torque 12 42 3AZ .

Remove positive battery cable lead (2) from positive battery connection point.

Release positive battery cable (2) from clamps (3).

Fig 12: Identifying Positive Battery Cable, Clamps, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

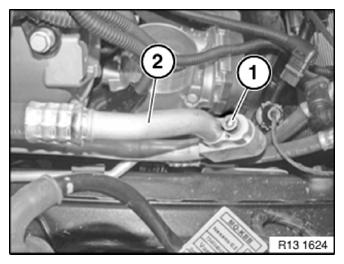

Release screw (1).

Tightening torque 64 53 3AZ .

Detach A/C line (2) and place to one side.

Replace sealing ring on A/C line.

Fig 13: Identifying A/C Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

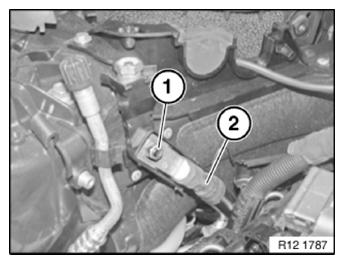

Slacken nut (1).

Tightening torque 12 42 7AZ .

Remove positive battery cable (2) and place to one side.

Fig 14: Identifying Positive Battery Cable And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Tightening torque 13 71 8AZ .

Release clamp (2).

Replace clamp (2).

Remove right charge-air duct (3).

Check the gasket on the exhaust turbocharger. replacing if necessary.

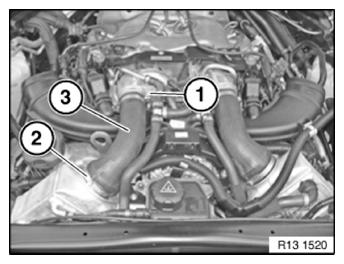

Fig 15: Identifying Right Charge-Air Duct And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

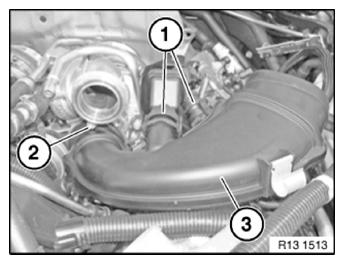

Graphic shows the left side, the procedure for the right side is identical.

Detach hoses (1) from clean air pipe.

Release screw (2).

Tightening torque 13 71 1AZ .

Detach clean-air pipe (3) in direction of travel from exhaust turbocharger.

Check seal on clean air pipe and renew if necessary.

Fig 16: Identifying Clean Air Pipe And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Screw back on all screw points of cable channels without fail! Some screw points are also ground points. If the wiring harnesses are not correctly screwed tight and secured, this may cause DME malfunction and failure!

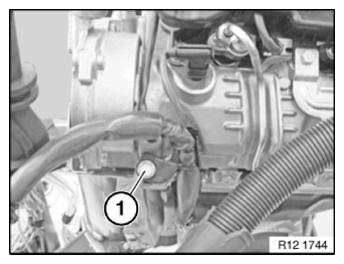

Release screw (1).

Tightening torque 12 51 2AZ .

Fig 17: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections for oxygen sensor and disconnect.

Release screws (1).

Tightening torque 12 51 2AZ .

Release wiring harness (2).

Release wiring harness (3) and place to one side.

IMPORTANT: Screw back on all screw points of cable channels without fail. Some screw points are also ground points .

Fig 18: Identifying Wiring Harness And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 12 51 2AZ .

Raise cable duct (2).

Fig 19: Identifying Cable Duct And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

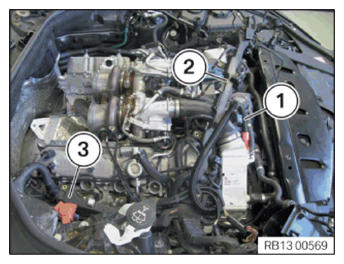

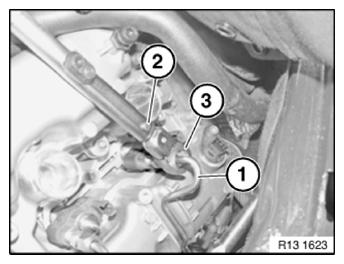

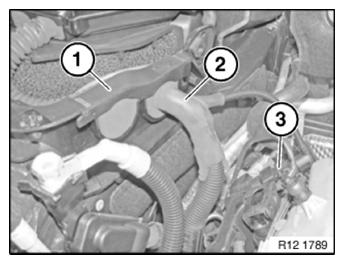

Lay positive battery cable (1) and wiring harness for injectors (2) forwards.

Slightly raise engine wiring harness (3).

Fig 20: Identifying Engine Wiring Harness, Wiring Harness For Injectors, And Positive Battery Cable

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Wear full face guard and protective gloves.
Fuel can emerge spontaneously at high velocity from the fuel injectors!
To reduce the fuel pressure, place rag over fuel injector and carefully tap against the fuel injector with a spanner.
There is a risk of injury if the fuel pressure is not reduced!

Only for injector, cylinders 5 and 6

Remove pressure line between high pressure pump and rail.

Graphic shows the left side. Procedure on right side identical.

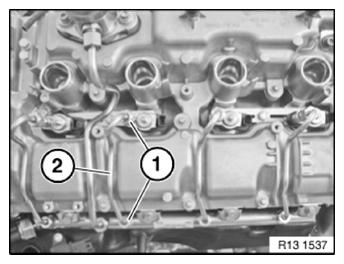

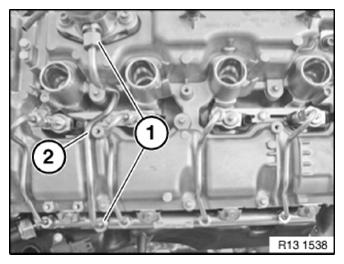

Release union nuts (1).

Disconnect pressure line (2).

Fig 21: Identifying Pressure Line And Union Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Removing all pressure lines, cylinders 1-4 between injector and rail

NOTE: The following description applies to all pressure lines.

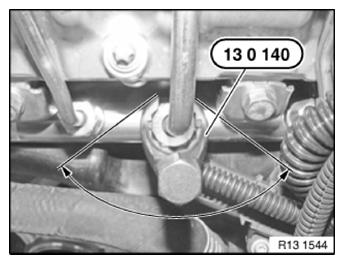

First disconnect the pressure line from the rail. To reduce existing fuel pressure if necessary. Fuel must not get into the spark plug slot. Then disconnect the pressure line from the injector.

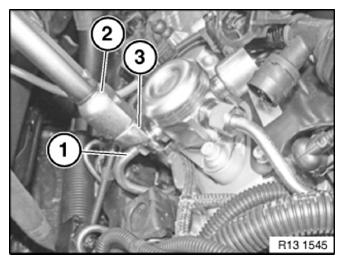

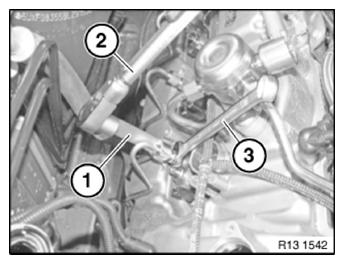

Tighten down pressure line on rail with special tools (2) 00 1 440 , (3) 13 0 162 and (4) 13 0 161 .

Fig 22: Tightening Pressure Line On Rail With Torque Wrench And Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

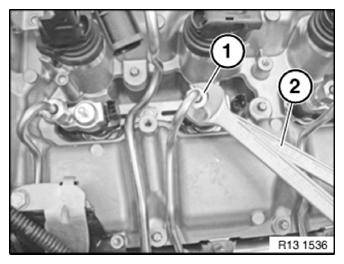

Secure injector against twisting with spanner (2).

Release union nut (1).

Remove pressure line.

IMPORTANT: If several pressure lines are removed, ensure that each pressure line is reinstalled in its original location (cylinder).
Mark pressure lines.

Fig 23: Releasing Union Nut And Spanner

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Wear safety goggles.
Oil and dirt particles may get into your eyes!

Before removing the injectors, clean or vacuum off injector slots.

Removing injector

NOTE: The following description applies to all injectors.

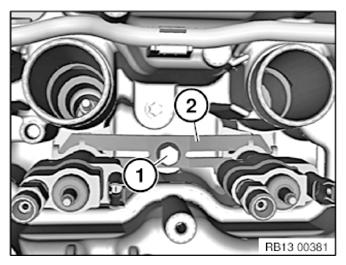

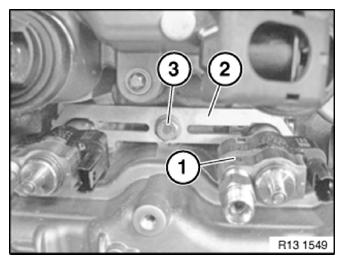

Release bolt (1) and remove holding-down element (2).

Fig 24: Identifying Holding-Down Element And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

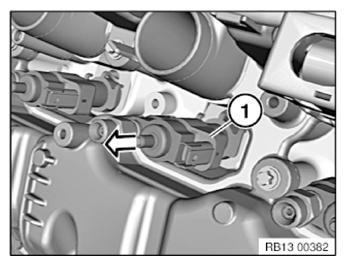

Pull out injector (1).

NOTE: If several injectors are removed, ensure that each injector is reinstalled in its original location (cylinder).
Mark injectors.

Fig 25: Pulling-Out Injector

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure in event of stuck injectors

Mount special tool 13 0 301 or 13 0 302 (from set of special tools 13 0 300 ) on the stuck injector. In so doing, attach the special tool at the bottom to the injector and secure at the top with the knurled screw to the injector feed.

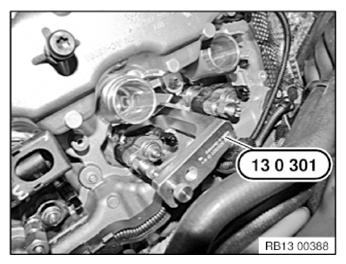

Fig 26: Mounting Special Tool (13 0 301) On Stuck Injector

Courtesy of BMW OF NORTH AMERICA, INC.

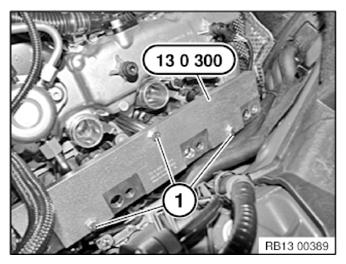

Mount special tool 13 0 300 over the stuck injector with special tool 13 0 301 or 13 0 302. In so doing, insert screws (1) in the designated holes and screw down.

Tightening torque 13 53 10AZ

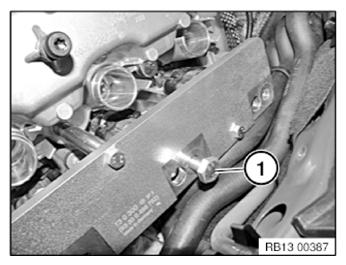

Fig 27: Identifying Special Tool (13 0 300) And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Twist bolt (1) through special tool 13 0 300 into special tool 13 0 301 or 13 0 302 on the stuck injector. Tighten down bolt (1) until the injector is pulled out.

Fig 28: Identifying Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

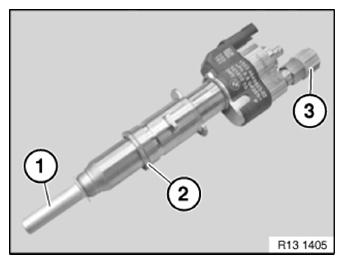

After removing, fit protective caps (1 and 3) to injector tip and fuel line connection.

Protective caps are available from BMW Parts Service.

Fig 29: Identifying Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing a new injector:

Use a new uncoupling element (2).
Pull protective cap (1) off of injector tip maximum 10 min. before installation (Teflon ring swells).

Fig 30: Identifying Protective Caps
Courtesy of BMW OF NORTH AMERICA, INC.

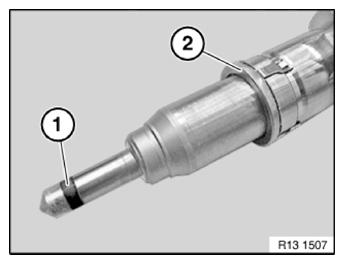

Installation note:

When reusing fuel injector:

Replace decoupling element (2).
Replace Teflon ring (1).
A Teflon ring which has been heated once by engine operation must be replaced before the injector is reinstalled.

Fig 31: Identifying Teflon Ring And Decoupling Element

Courtesy of BMW OF NORTH AMERICA, INC.

Replace Teflon ring

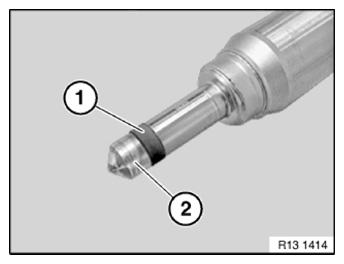

Before replacing the Teflon ring (1), make sure your hands and the work surface are clean and free of oil.

Avoid mechanical contact with injector tip (2).

Fig 32: Identifying Teflon Ring With Injector Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Teflon ring (1) with special tool 13 0 191 from injector (2).

Use a fluff-free cloth only to remove combustion residues from cylindrical part of injector tip (do not use ultrasound or other tools/agents).

Do not clean injector tip.

Fig 33: Identifying Teflon Ring, Special Tool (13 0 191), And Injector

Courtesy of BMW OF NORTH AMERICA, INC.

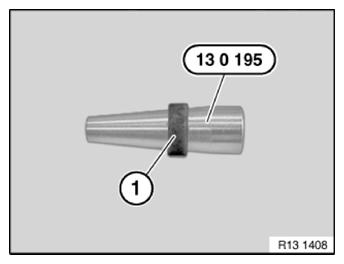

Push new Teflon ring (1) onto the installation cone 13 0 195 .

Fig 34: Identifying Teflon Ring On Installation Cone (13 0 195)

Courtesy of BMW OF NORTH AMERICA, INC.

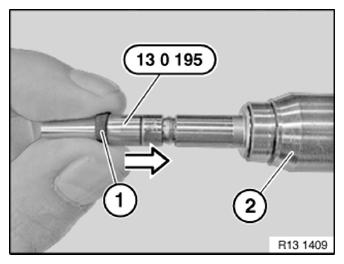

Push Teflon ring (1) with fingers assisted by the installation cone 13 0 195 onto the injector (2).

NOTE:

Do not use fingernails to slide Teflon ring on.
Do not use any lubricating agents.
The sealing ring is expanded when slid on.

Fig 35: Pushing Teflon Ring Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

To bring the expanded Teflon ring to its installation dimension, slide three assembly sleeves with decreasing diameters onto the injector.

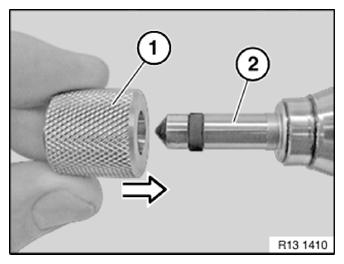

Slide assembly sleeve (1) with large opening first onto injector (1).

Do not use any lubricating agents.

Fig 36: Sliding Assembly Sleeve Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

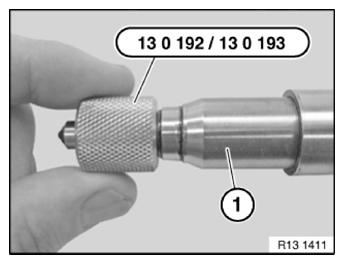

First slide assembly sleeve 13 0 192 (large diameter) onto injector (1).

Then slide assembly sleeve 13 0 193 (medium diameter) onto injector (1).

Fig 37: Sliding Assembly Sleeves Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

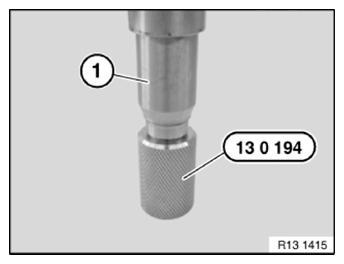

Finally, press injector (1) into assembly sleeve 13 0 194 (small diameter).

Installation note:

Install injector within 10 minutes or slide on protective cap (Fig 30Fig. 13 14 05) Teflon ring swells up.

Fig 38: Pressing Injector Into Assembly Sleeve 13 0 194 (Small Diameter)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing injector

Installation of injector is described separately from removal.

Before installing injector in engines that have been run

Check injector bore for dirt.
Clean only dirty injector bores.

Important - do not damage injector!

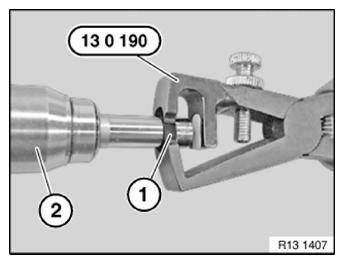

Clean injector bore: To do so, preferably slide injector without decoupling element (2) but with new Teflon ring (1) in and out of injector bore several times.
The Teflon ring must subsequently be replaced.
Clean contact surfaces of uncoupling elements (2) in cylinder head.
Replace decoupling element (2).

Fig 39: Identifying Teflon Ring And Decoupling Element
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Injection quantity compensation!

An injector quantity compensation must be carried out if an injector is replaced or changed on the cylinder side.

Injector quantity compensation is carried out with the aid of a so-called adjustment value.

The adjustment value is printed in two blocks of three digits on the injector.

The adjustment value must be read off before installation!

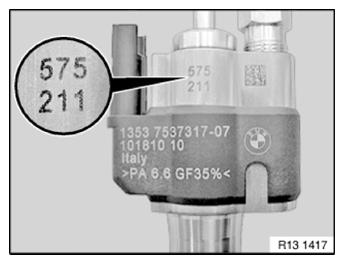

Fig 40: Identifying Adjustment Value Printed On Injector

Courtesy of BMW OF NORTH AMERICA, INC.

Enter the adjustment value according to the installation location (cylinder) of the injector.

If injector quantity compensation is not carried out, the engine may run roughly or fail to start.

Description of injector quantity compensation at end of instructions.

Fig 41: Identifying Injector Adjustment Value

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

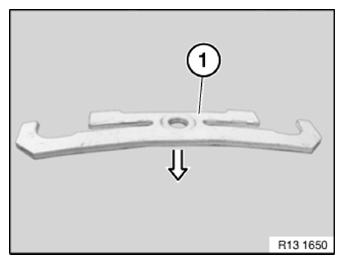

Hold-down device (1) is installed with curvature facing upwards.

Fig 42: Installing Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

Install injector (1).

Mount hold-down device (2) with the curvature facing upwards.

NOTE: Make sure hold-down device (2) is correctly seated.

IMPORTANT: Tighten bolt (3) hand-tight only so that hold-down device (2) is slack and if necessary injector (1) can still be turned.

Fig 43: Identifying Injector, Hold-Down Device, And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Only for injector, cylinders 5 and 6

Install pressure line between high pressure pump and rail.

Tighten down pressure line (1) hand-tight on rail and injector.

First tighten high-pressure line (1) on high-pressure pump using torque wrench (2) and special tool (3) 00 1 440 .

Tightening torque 13 53 3AZ .

Fig 44: Tightening Pressure Line On High Pressure Pump Using Torque Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

Only for injector, cylinders 5 and 6

Installation note:

When tightening the pressure line on the rail, ensure that the angle of rotation of special tool 13 0 140 is restricted. Reapply the special tool if necessary.

Fig 45: Tightening Pressure Line On Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Only for injector, cylinders 5 and 6

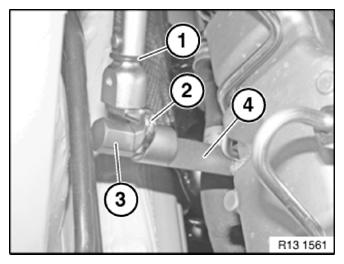

Tighten high-pressure line (1) on rail using torque wrench (2), long crowfoot spanner (3) and special tool (4) 13 0 140 .

Tightening torque 13 53 3AZ .

Fig 46: Tightening High-Pressure Line On Rail Using Torque Wrench, Long Crowfoot Spanner, And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of pressure line between injector and rail

Install pressure line (2). Tighten nuts (1) manually only.

IMPORTANT: Connect pressure line (2) without tension only.
To ensure distortion-free installation of the pressure line and to avoid damaging the thread, it must be possible for both nuts to be screwed on easily by hand!
If the nuts cannot be screwed on easily by hand, the injector must if necessary be turned a little.

Fig 47: Identifying Pressure Line And Union Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

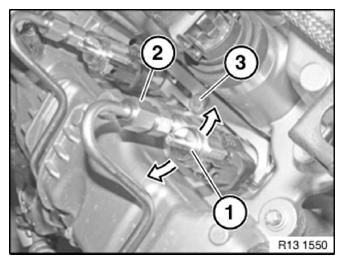

Turn injector (1) if necessary in direction of arrow until nuts on pressure line can be easily screwed on by hand.

Tighten nut (2) of pressure line hand-tight.

Then tighten down bolt for hold-down device (3).

Tightening torque 13 53 5AZ .

Fig 48: Identifying Injector, Hold-Down Device, And Union Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Adhere to tightening sequence:

First tighten down pressure line on injector.

Tighten down nut on injector with special tool (1) 13 0 161 and to torque (2). In so doing, grip hexagon head of injector with wrench (3).

Tightening torque 13 53 2AZ .

Fig 49: Tightening Pressure Line On Injector With Torque Wrench And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

For cylinder 4, tighten pressure line (1) with torque (2) and crowfoot wrench (3). In so doing, grip hexagon head of injector with spanner.

Tightening torque 13 53 2AZ .

Fig 50: Tightening Pressure Line With Torque Wrench And Crowfoot Wrench

Courtesy of BMW OF NORTH AMERICA, INC.

After this, tighten pressure line on rail.

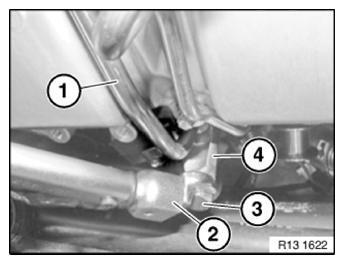

Tighten down pressure line on rail with torque wrench (1) and special tools (2) 00 1 440 , (3) 13 0 162 and (4) 13 0 161 .

Tightening torque 13 53 2AZ .

Fig 51: Tightening Pressure Line On Rail With Torque Wrench And Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Perform an injection quantity compensation

Connect BMW diagnosis system
Identify vehicle
Select "Function selection"
Select "Service functions"
Select "Engine electronics"
Select "Adjustment function"
Select "Adjust injectors"
Change "Test schedule"
For each replaced injector, the adjustment value must be entered according to the installation location (cylinder).

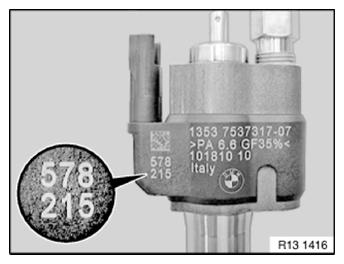

Fig 52: Identifying Adjustment Value Printed On Injector
Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Bleed fuel system with BMW diagnosis system.

Check fuel system for tightness.

Check function of DME.
