61 71 100 Removing and installing/replacing windscreen washer pump

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Before replacing the windscreen washer pump, check the fluid reservoir for dirt contamination and clean if necessary!

Necessary preliminary tasks:

Remove front WHEEL ARCH COVER REAR SECTION .
Remove SIDE REPEATER ON RIGHT .
Drain washer fluid reservoir for windscreen washer system.

Feed cable for side repeater (1) out of washer fluid reservoir (2).

Press windscreen washer pump (3) upwards in direction of arrow and lay to left side.

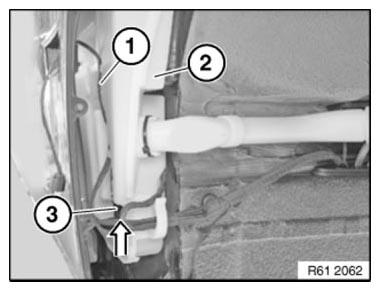

Fig 1: Pressing Windscreen Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach washer fluid line (2) from windscreen washer pump (3).

Remove windscreen washer pump (3).

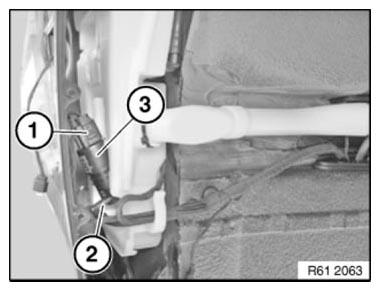

Fig 2: Identifying Windscreen Washer Pump, Washer Fluid Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace strainer for windscreen washer pump.

If necessary, coat sealing ring of windscreen washer pumps with lubricant.

Ensure hose pipe is laid without kinks.

Make sure electrical wiring are correctly laid.
