63 13 200 Removing and installing/replacing front left or right auxiliary direction indicator

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Carefully unlock front auxiliary turn indicator (1) using special tools 00 9 341 .

Remove front auxiliary direction indicator (1) in direction of arrow.

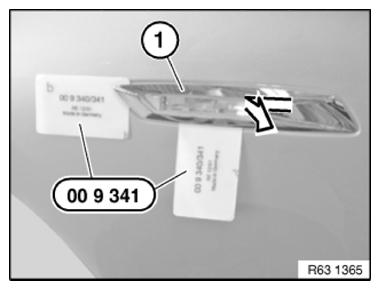

Fig 1: Removing Front Auxiliary Turn Indicator Using Special Tools 00 9 341

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect. Remove front auxiliary direction indicator (2).

Installation:

Tension springs (3) and retaining lugs (4) must not be damaged.

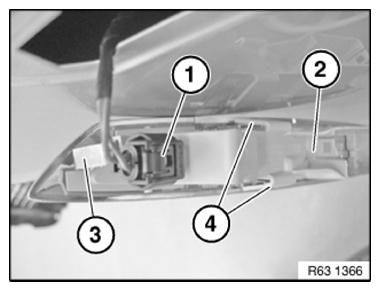

Fig 2: Identifying Plug Connection, Tension Springs And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
