61 31 898 Replacing relay for air supply system (vehicles from 07/2013)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe the SAFETY INFORMATIONS
for handling the battery!
Follow notes FOR DISCONNECTING AND CONNECTING BATTERY !
Observe notes on POWER SUPPLY /on intelligent battery sensor (IBS).
Follow notes FOR DISCONNECTING AND CONNECTING BATTERY !
Observe notes on POWER SUPPLY /on intelligent battery sensor (IBS).
Necessary preliminary tasks:
- POWER DISTRIBUTION BOX COVER ON RIGHT
- Remove RIGHT CAPPING TRIM PANEL
- Remove BOTTOM RIGHT TRIM PANEL
- Disconnect NEGATIVE BATTERY TERMINAL

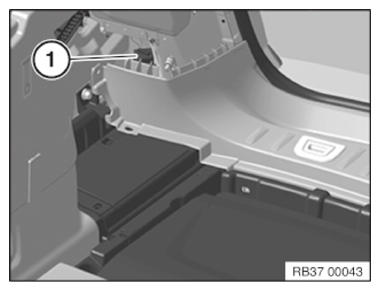

Pull off and replace the relay (1) for the air supply system.
After installation
- Delete fault memory
