33 55 000 Removing and installing/replacing rear anti-roll bar

Necessary preliminary tasks:

• Remove both ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR

Release screws (1).

Tightening torque 33 55 1AZ .

Installation note:

Replace screws.

Turn anti-roll bar (2) and remove sideways.

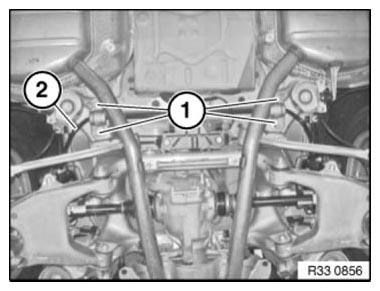

Fig 1: Identifying Anti-Roll Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Check BOTH RUBBER MOUNTS FOR DAMAGE  and replace if necessary.
• Pay attention to correct installation position when installing anti-roll bar.
• The bend of the anti-roll bar must point upwards in the anti-roll bar to anti-roll bar link area.
