33 55 021 Replacing both rubber mounts for stabilizer mounting

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove STABILIZER FROM REAR AXLE CARRIER

IMPORTANT: Circo Light must not be used between stabilizer and rubber mount!

Remove retaining bracket (1) and rubber mount (2) from stabilizer.

Installation:

Coat rubber mount with Circo Light to install retaining bracket.

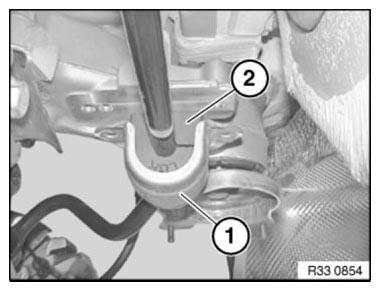

Fig 1: Identifying Retaining Bracket And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep stabilizer clean and free of oil and grease.

Mount rubber mount (1) by way of slot (2) as pictured on stabilizer.

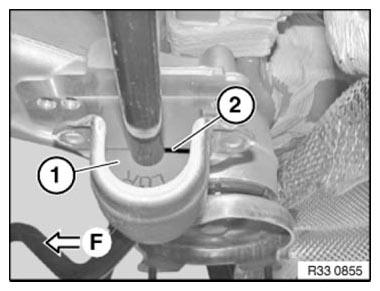

Fig 2: Mounting Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
