31 21 090 Replacing left/right swivel bearing (All-Wheel Drive vehicle)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove SWIVEL BEARING .
- REMOVE pulse generator from swivel bearing

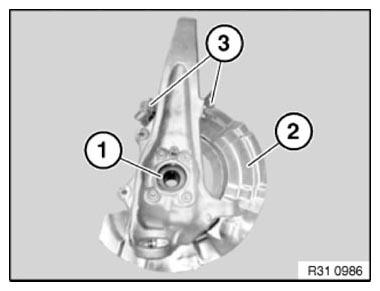

- Remove WHEEL BEARING (1).
Check wheel bearing and replace if necessary.
- Modify BRAKE GUARD PLATE (2).
- Modify line clip (3).
After installation
- Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
