31 21 088 Removing and installing left or right swivel bearing (All-Wheel Drive vehicle): Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL .

Release collar bolt (1), press brake pedal to floor for this purpose.

Tightening torque 31 60 2AZ

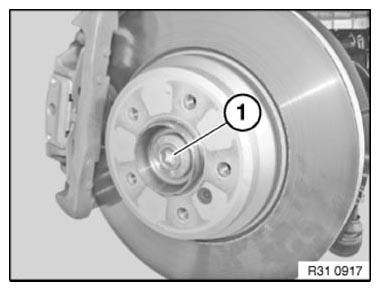

Fig 1: Identifying Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace collar bolt (1) and compression spring (2).
Pay attention to direction of installation of compression spring!
Keep collar bolt and spur gearing of bearing/output shaft clean and free of grease.

IMPORTANT: See INSTALLATION NOTE ON SPUR GEAR.

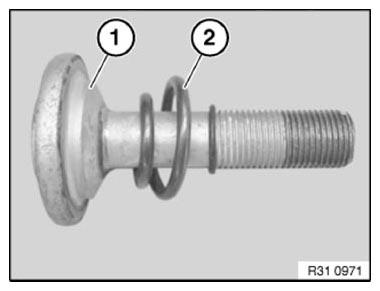

Fig 2: Identifying Collar Bolt And Compression Spring

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure swivel bearing against falling out.

Remove BRAKE DISC .
Expose brake hose and cable on swivel bearing.
REMOVE pulse sensor from swivel bearing.
REMOVE lower control arm from swivel bearing.
REMOVE trailing link from swivel bearing
REMOVE track rod end from swivel bearing.
Remove upper control arm from swivel bearing. See TOP LEFT CONTROL ARM or TOP RIGHT CONTROL ARM .

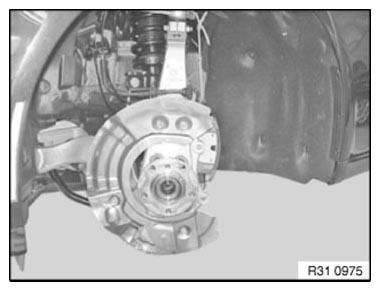

Fig 3: Identifying Front Wheel Hub
Courtesy of BMW OF NORTH AMERICA, INC.

Remove swivel bearing.

IMPORTANT: Note on installation for spur gearing must be observed without fail!
