32 41 280 Removing and installing/replacing oil reservoir (RWD with N63 engine)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.
Seal off hydraulic lines with seal plugs.
Necessary preliminary work
- Draw off and dispose of hydraulic fluid from oil reservoir
- Remove front left SUSPENSION CROSS-BRACE
- Remove left INTAKE PORT
- Remove ENGINE CONTROL UNIT from oil reservoir and place to one side

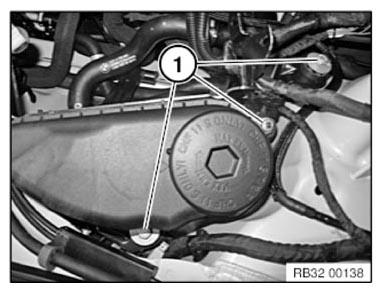

Release screws (1) on oil reservoir and press oil reservoir forwards until the return and suction line hose clamps can be reached.
See the following illustration.

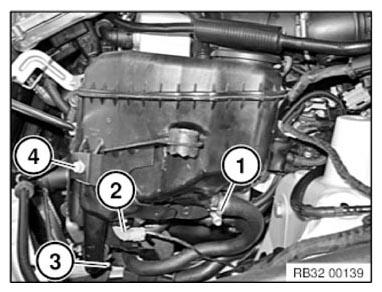

Release hose clamps (1) and (3) and detach suction and return lines.
Tightening torque 32 41 3AZ .
Unfasten plug connection (2) from oil level sensor and disconnect.
Release screw (4), remove holder from reservoir and remove reservoir.
Installation note:
Renew hose clamps.
Replacement
If applicable, transfer OIL LEVEL SENSOR .
After installation
- If necessary, carry out initial Dynamic Drive operation
- Check line connections for leaks
