51 71... Removing and installing/replacing (front) left or right suspension cross-brace
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Driving without the suspension cross-brace is not permitted. (risk of damage to the body).
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .

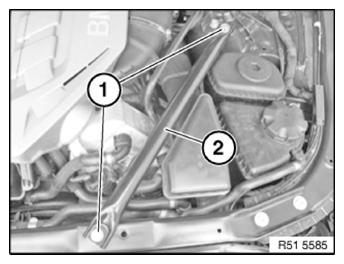

Release screws (1).
Tightening torque 51 61 1AZ AND 2AZ .
Remove suspension cross-brace (2).
Installation:
Make sure suspension cross-brace (2) is in correct installation position. Screw with washer is fitted at connection, front top.
