63 21 183 Removing and installing/replacing left or right rear light (on rear lid)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TAILGATE TRIM .
Remove PANEL FOR REAR LID .

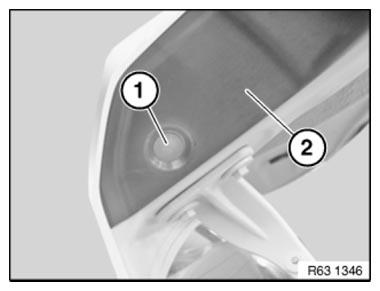

Carefully lever out clip (1) from rear light trim (2).

Fig 1: Identifying Rear Light Trim And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

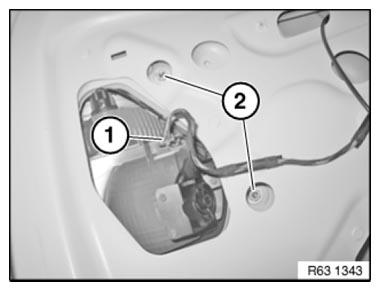

Disconnect plug connection (1).

Unscrew nuts (2).

Tightening torque 63 21 4AZ .

Fig 2: Identifying Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

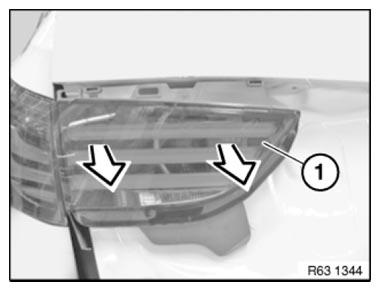

Remove rear light (1) in direction of arrow.

Fig 3: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Note BULB TYPE .

If necessary, replace REAR LIGHT TRIM .
