63 12 010 Removing and installing or replacing left headlight (xenon headlight)

Necessary preliminary tasks

• Remove FRONT BUMPER PANEL .
• Vehicles with auxiliary radiator:

  Remove FRONT WHEEL ARCH COVER .

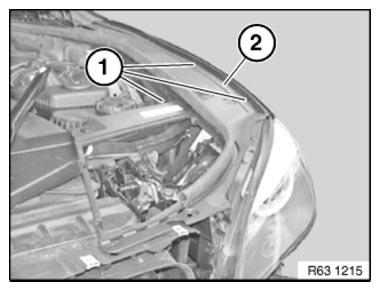

Lever out expanding rivets (1) on engine compartment lid seal (2).

Fig 1: Identifying Expanding Rivets On Engine Compartment Lid Seal

Courtesy of BMW OF NORTH AMERICA, INC.

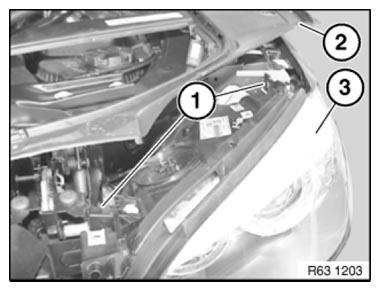

Remove seal for engine compartment lid (2) on left.

Release screws (1) on headlight (3) at top.

Tightening torque 63 12 1AZ .

Fig 2: Identifying Engine Compartment Lid Seal And Headlight Screws

Courtesy of BMW OF NORTH AMERICA, INC.

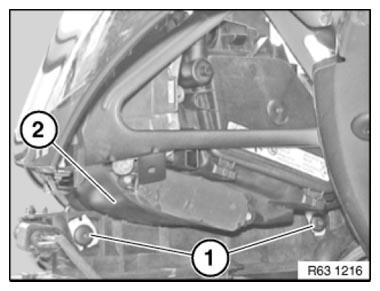

Release screws (1) on headlight (2) at bottom.

Tightening torque 63 12 1AZ .

Fig 3: Identifying Headlight Screws

Courtesy of BMW OF NORTH AMERICA, INC.

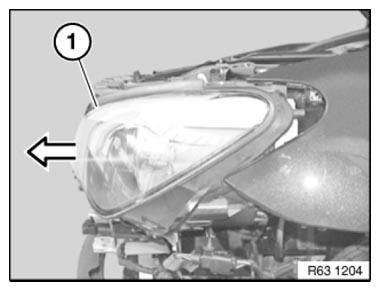

Pull out headlight (1) in direction of arrow slightly.

Fig 4: Pulling Out Headlight In Direction

Courtesy of BMW OF NORTH AMERICA, INC.

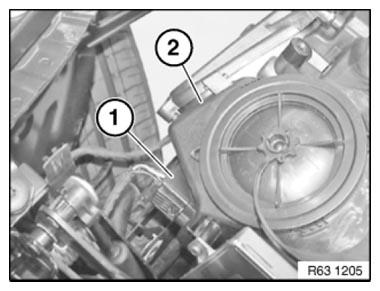

Disconnect plug connection (1) on headlight (2) and remove headlight.

Fig 5: Identifying Plug Connection On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

• If necessary, remove bulbs

  Note BULB TYPE .

Replacement only:

• Remove IGNITION DEVICE FOR XENON HEADLIGHT .
• Remove CONTROL UNIT FOR XENON HEADLIGHT .
• Remove XENON LIGHT MODULE .
• Remove TURN INDICATOR INSERT .
• If necessary, REMOVE CORNERING LIGHT .
• For F07/F10/F11:

Remove BULBS FOR FRONT LEFT SIDE LIGHTS (LED MODULE)

Installation note:

ADJUST  headlight.
