63 99 145 Replacing bulb for front left side light / daytime driving lights (xenon headlight) (LED module)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary work

Remove LEFT HEADLIGHT .

Release screws (1).

Lift out LED module (2).

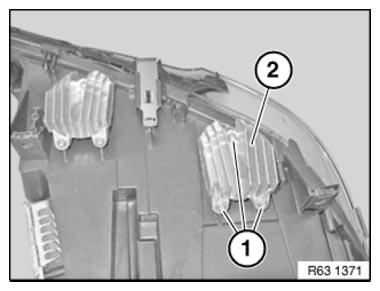

Fig 1: Identifying LED Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove LED module (2).

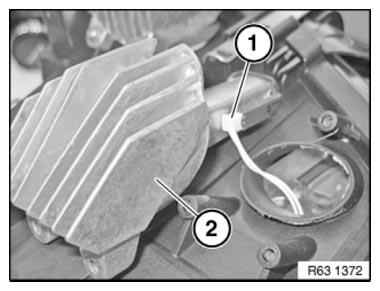

Fig 2: Identifying Plug Connection And LED Module

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Always replace LED modules (2) as a pair.

If necessary, use accompanying adapter cable.

Replace seal for LED module (2).

Make sure LED module (2) is correctly seated.

Note BULB TYPE .
