63 11 550 Removing and installing/replacing the headlight driver module
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon lighting system: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

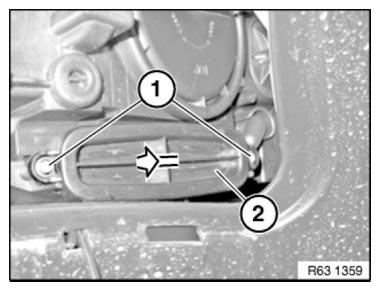

Release screws (1).
Remove cover (2) in direction of arrow.
Release screws (1).
Tightening torque 63 12 3AZ .
Remove headlight driver module (2) in direction of arrow.
Installation:

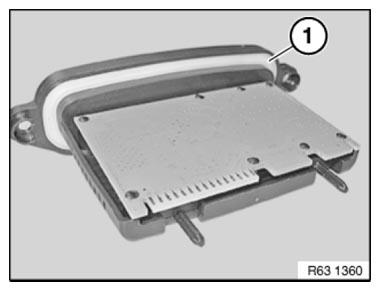

When installing, make sure sealing sleeve (1) is correctly seated.
Replacement:
Teach in headlight driver module (1) via vehicle diagnosis.
- Service functions
- Body
- Lighting
- Learning turn signal indicator
WARNING:
Version with xenon lighting system: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Release screws (1).
Remove cover (2) in direction of arrow.
Release screws (1).
Tightening torque 63 12 3AZ .
Remove headlight driver module (2) in direction of arrow.
Installation:
When installing, make sure sealing sleeve (1) is correctly seated.
Replacement:
Teach in headlight driver module (1) via vehicle diagnosis.
- Service functions
- Body
- Lighting
- Learning turn signal indicator
