63 17 070 Removing and installing left front fog light

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The time value of this job does not include adjustment of the FOG LIGHTS !

Necessary preliminary work

REMOVE ornamental grille in bumper trim.

Release screws (1).

Tightening torque 63 12 7AZ .

Remove fog light (2) in direction of arrow

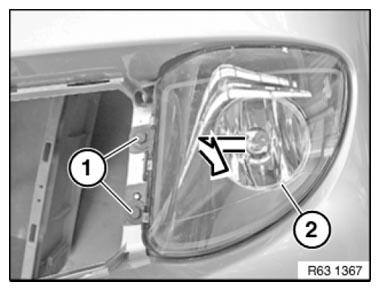

Fig 1: Removing Fog Light

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Disconnect plug connection (1) on fog light (2).

Remove fog light (2).

Replacement

If necessary, turn bulb holder in direction of arrow and remove from fog light (2).
Note BULB TYPE .

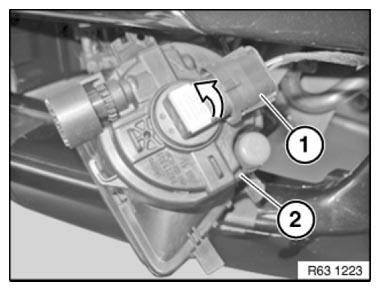

Fig 2: Turning Bulb Holder From Fog Lamp
Courtesy of BMW OF NORTH AMERICA, INC.
