51 11 183 Removing and installing/replacing ornamental grille for bumper trim (side)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Unclip retaining lugs (1) and remove ornamental grille (2) towards front.

Installation note:

Retaining lugs (1) must not be damaged.

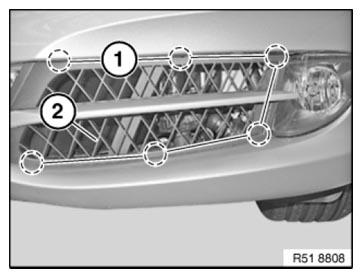

Fig 1: Identifying Retaining Lugs And Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify trim (3) of ornamental grille (1).

Installation note:

Retaining lugs (2) must not be damaged.

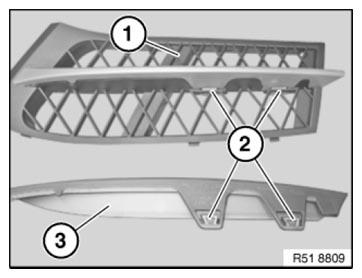

Fig 2: Identifying Trim Of Ornamental Grille And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
