63 10 014 Adjusting fog lights
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .
Necessary preliminary tasks
- Remove TRIM GRILLE IN BUMPER TRIM .
IMPORTANT:
Do not damage adjusting screw when adjusting fog lamp.

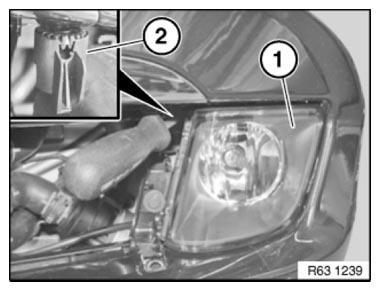

Adjust fog lamp (1) at adjusting screw (2).
