41 62 033 Adjusting Rear Lid Lower Section

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

Read contents of BODY, GENERAL .

Observe 41 00... BODY GAP DIMENSIONS .

NOTE: The rear lid lower section must be provided with all attachment parts for correct adjustment.
Following components must be correctly fitted and adjusted:

REAR LID

When the lower tailgate section is closed, the lock striker must not make contact with or brush against the tailgate lock. If necessary, remove LOCK STRIKER .

Sideways and vertical adjustment:

Release screws (2) until such stage that the lower tailgate section can still be moved.

Adjust tailgate lower section sideways and vertically.

Tightening torque 41 62 4AZ .

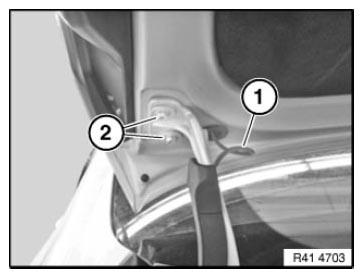

Fig 1: Identifying Tailgate Lower Section And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment in longitudinal direction:

Necessary preliminary tasks

Remove CENTRE TRIM PANEL for tailgate.

Release screws (1) until such stage that the lower tailgate section can still be moved.

Adjust lower tailgate section in longitudinal direction.

Tightening torque 41 62 5AZ .

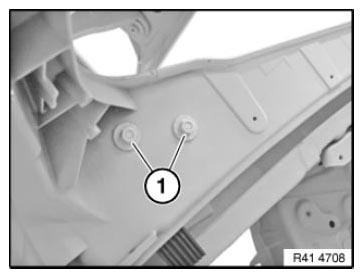

Fig 2: Identifying Lower Tailgate Section Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation note

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
If necessary, adjust REAR LID CATCH .
If reversing camera optional equipment installed:

Calibrate REVERSING CAMERA .
