51 24 015 Adjusting tailgate catch for tailgate lower section

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Prerequisite:

Tailgate must be correctly adjusted to fit; if necessary, ADJUST TAILGATE .

For ideal setting, refer to 41 00... BODY GAP DIMENSIONS .

Adjust tailgate catch for TAILGATE UPPER SECTION if necessary.

Depending on version, press in or screw in bump stop (1) on tailgate on left and right completely.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

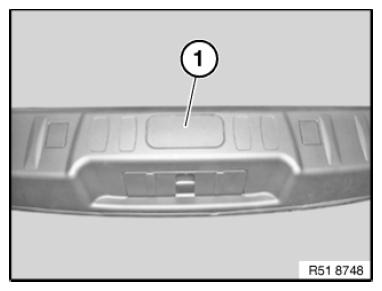

Fig 1: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Lever out protective cap (1).

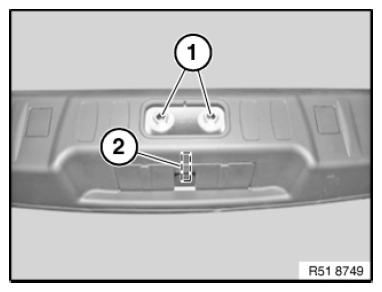

Fig 2: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) until striker (2) can still just be moved and centers itself.

IMPORTANT: Striker (2) must not brush against tailgate lock.

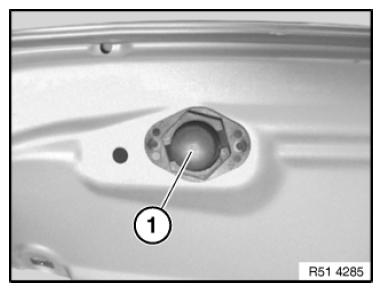

Fig 3: Identifying Striker And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Close tailgate.

Check 41 00... BODY GAP DIMENSIONS . and locking comfort.

If necessary, repeat procedure.

NOTE: When the tailgate is closed, the striker must not touch or scrape against the tailgate lock. Look out for scratch marks.

Open tailgate.

Tighten down nuts (1).

Tightening torque 51 24 8AZ .

Fig 4: Identifying Striker And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust bump stops (1) on tailgate.

NOTE: Operation is described in:

Removing and installing/replacing BUMP STOPS ON TAILGATE .

Fig 5: Identifying Bump Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear view camera:

After adjusting, check rear view camera and if necessary RECALIBRATE .
