31 35 000 Removing and installing/replacing front stabilizer

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT UNDERBODY PROTECTION.
Remove BOTH ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .

Release screws (1).

Tightening torque 31 35 1AZ.

Remove anti-roll bar (2) downwards.

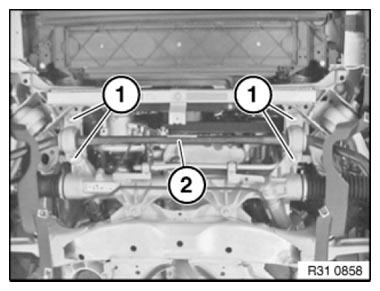

Fig 1: Identifying Anti-Roll Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screws.

Pay attention to installation location of retaining bracket and mounting plate!

Nose (1) on retaining bracket must point left in direction of travel
Curve (2) on lower mounting plate points to rubber bearing

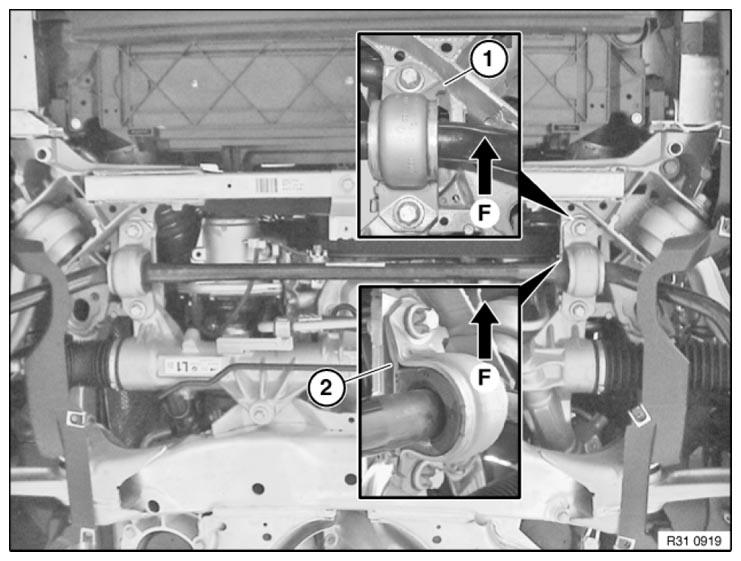

Fig 2: Identifying Nose On Retaining Bracket And Curve On Lower Mounting Plate

Courtesy of BMW OF NORTH AMERICA, INC.
