51 47 490 Removing and installing / replacing front underbody protection

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew all bolts.

Remove underbody protection (1) in direction of arrow from bumper trim (2).

Installation:

Make sure underbody protection (1) is correctly seated.

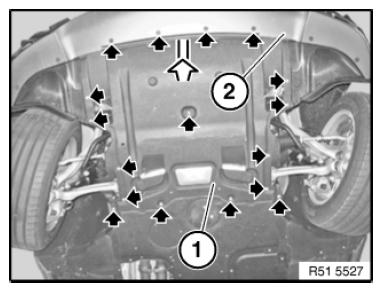

Fig 1: Removing Underbody Protection From Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
