51 24 360 Removing and installing or replacing left or right gas strut for rear lid

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury. Support rear lid in fully opened position with suitable apparatus.

Necessary preliminary tasks

Remove WATER GUTTER COVER from side.
TAILGATE TRIM side.

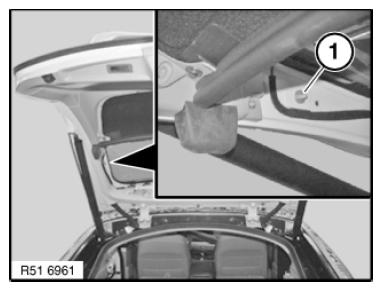

Unfasten collar nut (1).

Tightening torque: 51 24 6AZ

Fig 1: Identifying Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Make a written record of the installation position of the gas pressure support(s) before removing.

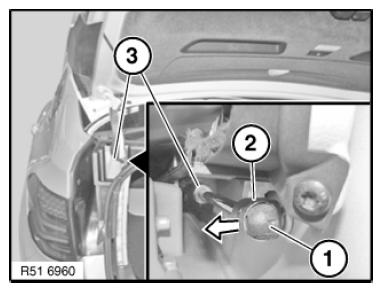

Lift off retaining spring (2) in direction of arrow and take off gas pressure spring (3) with ball socket (1).

Fig 2: Lifting Off Retaining Spring

Courtesy of BMW OF NORTH AMERICA, INC.

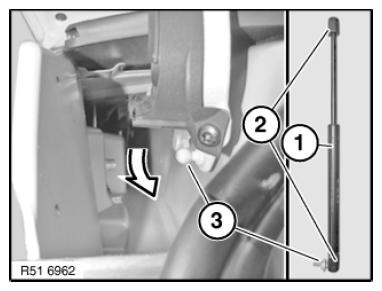

Remove gas pressure spring (1) in direction of arrow.

Installation:

Check ball socket (2) and ball heads (3) for damage, replace if necessary.

Fig 3: Removing Gas Pressure Spring

Courtesy of BMW OF NORTH AMERICA, INC.
