51 49 029 Install water gutter cover at side

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Open rear lid
Remove CENTRE WATER GUTTER .

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Detach mucket (1) along water gutter (2).

Release bolt (3).

Tightening torque: 51 49 6AZ

Release expansion rivet (4).

Remove water gutter (3)

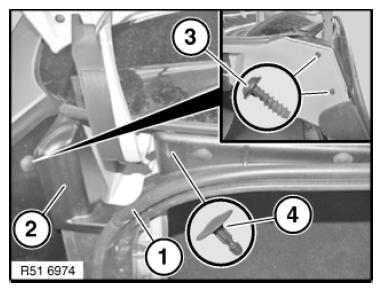

Fig 1: Identifying Water Gutter, Rivet, Mucket And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Check clamp (1) for damage, replacing if necessary.

IMPORTANT: If clip mounts (2) are removed after additional work (such as for painting), they need to be replaced to prevent leaks.

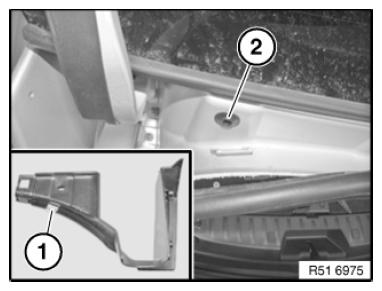

Fig 2: Identifying Clip Mounts And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
