51 49 022 Removing and installing/replacing trim panel for rear lid, side left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM PANEL AT TOP .

Unclip trim panel (1) towards inside.

Installation:

If necessary, replace faulty clips (2).

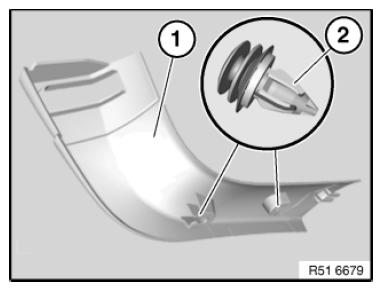

Fig 1: Identifying Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fixtures (2) on trim panel (1) must not be damaged, replace trim panel if necessary.

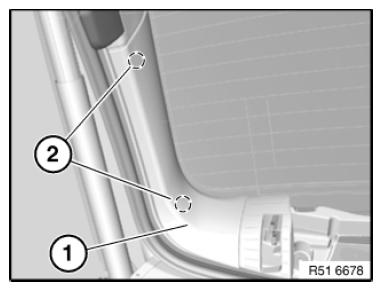

Fig 2: Identifying Fixtures And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
