51 24 137 Removing and installing/replacing Soft-Close System for lower rear lid

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PANEL FOR TAILGATE .

Disconnect plug connection (1).

Release screws (2) and feed out drive (3).

Tightening torque 51 24 7AZ .

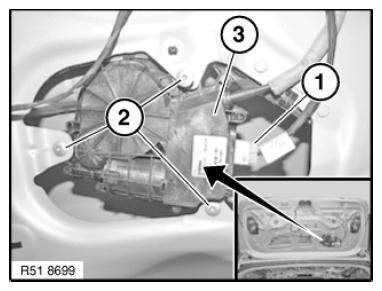

Fig 1: Identifying Drive, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed Bowden cable out of REAR LID LOCK .

Installation:

Make sure Bowden cable (1) is correctly positioned in rear lid.

Lay Bowden cable (1) without kinks.

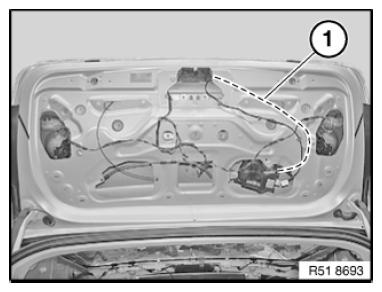

Fig 2: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
