51 24 020 Removing and installing/replacing rear lid lock for lower rear lid

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PANEL FOR REAR LID .

Release screws (1).

Tightening torque 51 24 1AZ .

Feed out rear lid lock (2).

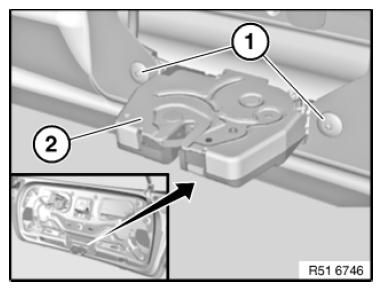

Fig 1: Identifying Rear Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect Soft Close Bowden cable (1).

If necessary, disengage emergency release (3).

Remove rear lid lock (2).

Disconnect plug connection (4).

Installation:

Note different encoding of plug connections.

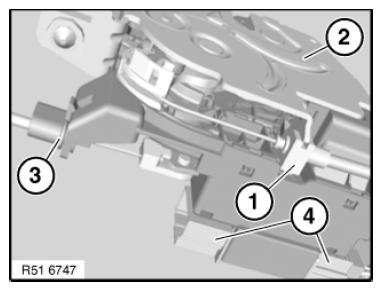

Fig 2: Identifying Plug Connection, Rear Lid Lock And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
