51 45 195 Removing and installing/replacing trim for lower right instrument panel (ECE only)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (3) and remove carpet cover (4) towards front.

Release screws (1).

Detach trim panel (2) and drop slightly.

Disconnect plug connections at the back.

Remove trim (2) in direction of arrow.

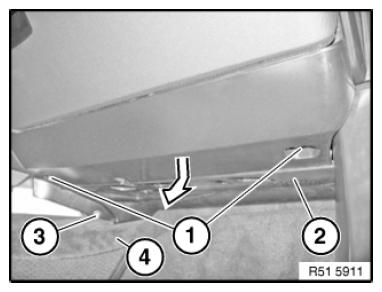

Fig 1: Removing Carpet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace retainers (1).

Replacement

Remove FOOTWELL LIGHT .

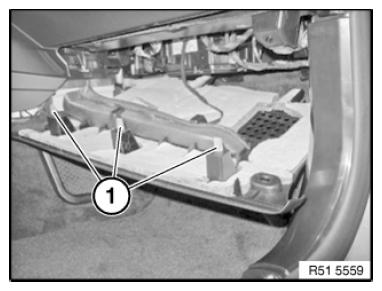

Fig 2: Identifying Footwell Light Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
