51 49 120 Removing and installing/replacing cargo cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PARTITION WALL MOUNTING COVER .
Remove FRONT LUGGAGE COMPARTMENT RECESS PANEL .
Remove CROSS MEMBER COVER .

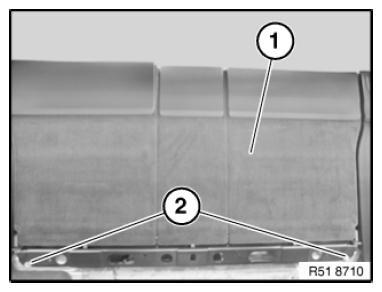

Loosen bolts (2) from cargo cover frame (1).

Fig 1: Identifying Bolts And Cargo Cover Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

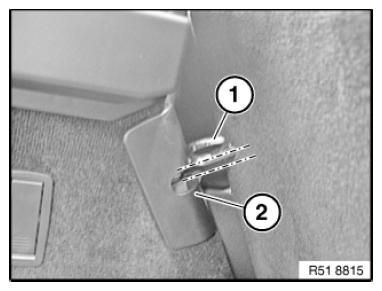

Left and right strikers (1) must not brush at top against lock cover (2).

Fig 2: Identifying Strikers And Lock Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

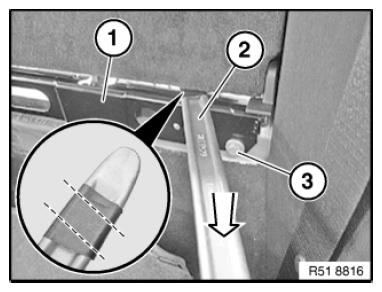

To avoid damage, wrap tire iron (2) as pictured.

Tighten screw (3) loosely.

Carefully position cargo cover frame (1) with tire iron (2) in downward direction (max. iron travel = frame hole stop at screw).

Tighten screw (3).

Fig 3: Positioning Cargo Cover Frame Using Tyre Iron

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 47 1AZ .

NOTE: Check freedom of movement of lock striker again.

Fold down cargo cover toward the front.

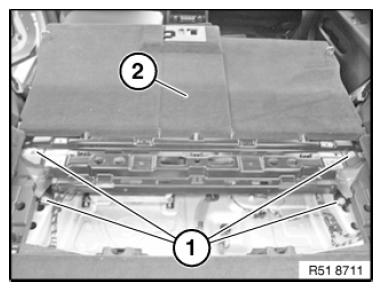

Loosen bolts (1) from cargo cover frame (2).

Tightening torque 51 47 1AZ .

Installation:

Centre cargo cover (2).

Completely remove cargo cover with the aid of a 2nd person.

Fig 4: Identifying Cargo Cover Frame And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
