51 47... Removing and installing/replacing cover of cross member

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Fold backrests forwards.
Fold up and lock roll-up cover

NOTE: For a better view surrounding components have been omitted.

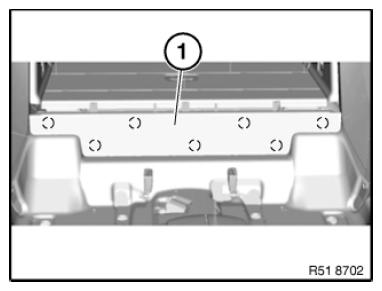

Unclip cover of cross member (1) at marked locations and remove cover.

Fig 1: Identifying Cross Member

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips.

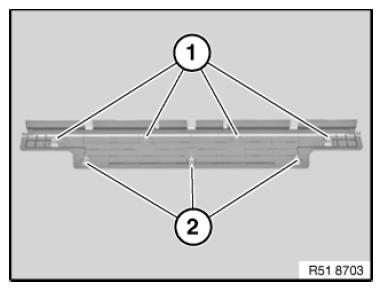

Klipp (1) = yellow

Klipp (2) = White

Replacement

Modify clips (1) and (2).

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
