51 49 110 Remove and install/replace lower trim of loading edge

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks

REMOVE TRIM FROM LEFT AND RIGHT tailgate.
Remove TRIM ON UPPER PART OF TAILGATE .
Remove tailgate opener
Remove luggage compartment lighting

Use special tool to lift clips (1) 00 9 321 unhinge trim hook (2) and remove trim panel.

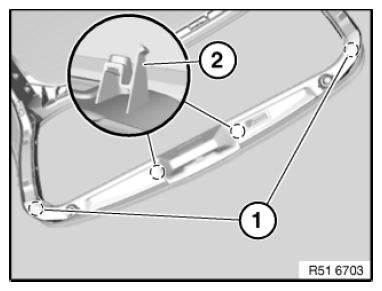

Fig 1: Identifying Trim Hook And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clamps (2) on trim panel (1) must not be damaged, replace trim panel if necessary.

Fig 2: Identifying Clamps And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
