51 49 112 Remove and install/replace upper part of loading edge tailgate trim

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

REMOVE TRIM FROM LEFT AND RIGHT tailgate.

Lift cover lid (1) and loosen screws below.

Tightening torque: 51 49 2AZ

Fig 1: Identifying Cover Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

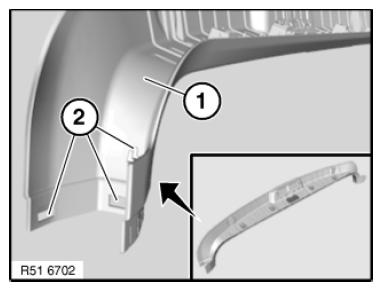

Guide (2) on trim panel (1) must not be damaged, replace trim panel if necessary.

Fig 2: Identifying Guide And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
