51 45 382 Replace decorative strip on instrument panel at right
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT .
- Remove START/STOP SWITCH .
- Remove CENTRE FRESH-AIR GRILLE .

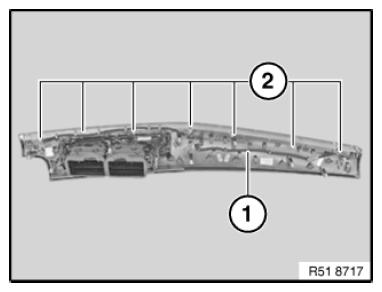

Disconnect remaining plug connections at wiring harness (1).
Modify wiring harness (1)
Release retaining tabs (2) from decorative strip.
Modify decorative strip, including fibre optic conductor.
Installation:
Check proper fit of decorative strip and center if necessary.
