51 45 380 Removing and installing decorative strip on right instrument panel
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

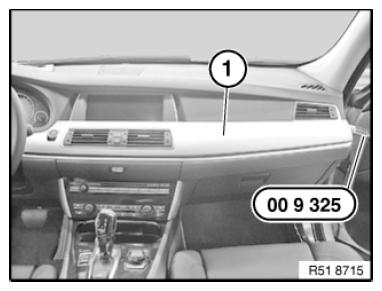

Carefully unclip sides of decorative strip (1) with special tool 00 9 325 .
Then carefully unclip middle.
Lift off decorative strip (1) slightly and disconnect underlying plug connection.
Remove decorative strip (1).
Installation:

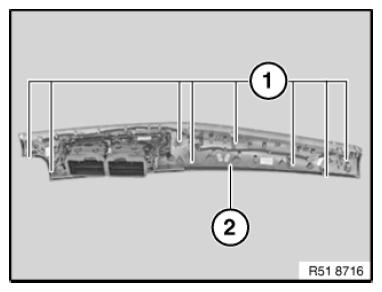

If necessary, replace faulty clips (1) on back of decorative strip (2).
