11 65 185 Removing and installing/renewing heat shield at bottom (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Disconnect the BATTERY CABLE FROM THE NEGATIVE TERMINAL .
Remove FAN COWL with electric fan.
Remove the ALTERNATOR (not F04).
Remove both EXHAUST TURBOCHARGERS .
Remove both EXHAUST MANIFOLDS .

Release screws (1).

Tightening torque 11 65 3AZ .

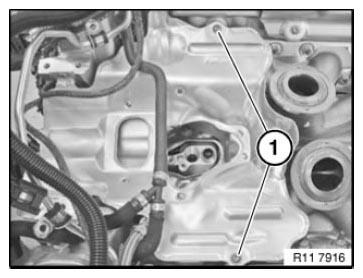

Fig 1: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

Remove heat shield (2) towards top.

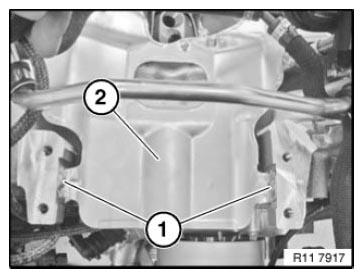

Fig 2: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

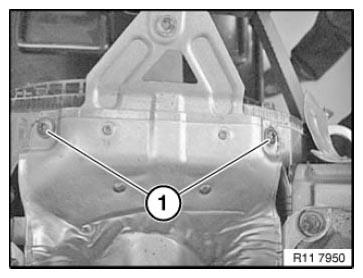

Fig 3: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release front screws on heat shield (1).

Tightening torque 11 65 3AZ .

Remove heat shield (1) towards top.

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

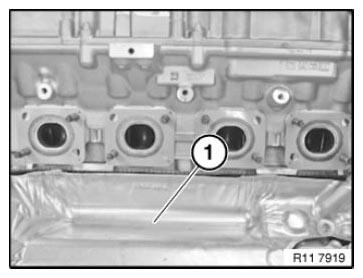

Fig 4: Identifying Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
