17 11 035 Removing and installing/renewing fan cowl with electric fan (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Switch off ignition.
Remove CROSS CONNECTION.
Remove intake manifolds on left and right. See 13 .. ... REMOVING INTAKE DUCT (N63) .
Remove front UNDERBODY PROTECTION.

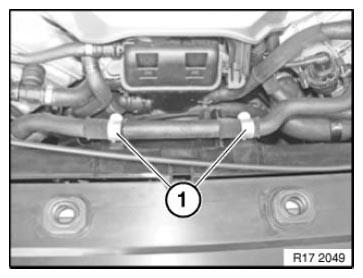

Detach coolant hose from fan cowl at retainer (1).

Fig 1: Identifying Coolant Hose Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

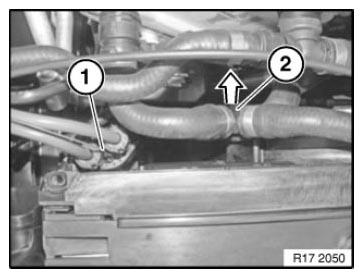

Unlock and disconnect plug (1) on fan cowl.

Release screw (2) on holder for coolant hoses.

Tightening torque 17 10 5AZ.

Detach coolant hoses with holder from fan cowl.

Fig 2: Releasing Coolant Hoses Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

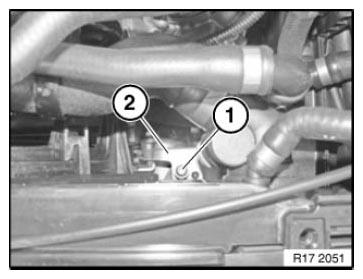

Release screw (1).

Tightening torque 17 10 3AZ.

Detach transmission oil cooler upwards from fan cowl.

Fig 3: Identifying Transmission Oil Cooler Retainer With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fan cowl (1) at clamps (2) on left and right, feed out in upward direction and remove.

Fig 4: Removing Fan Cowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

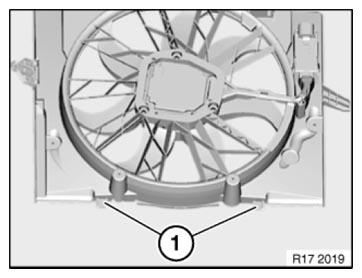

Insert retaining tab (1) at bottom on module carrier.

Fig 5: Identifying Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
