11 28 010 Replacing drive belt for alternator (N63)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
If contaminated with hydraulic fluid:
Replace drive belt.
Replace drive belt.
Installation note:
If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.
Necessary preliminary work
- Remove FAN COWL .
- Release EXPANSION TANK
for charge air cooler from mounting and press forwards.
Coolant hoses do not need to be released!
IMPORTANT:
Belt tensioner is under high initial spring preload.
Slowly and carefully pre-tension belt tensioner (1) in direction of arrow up to stop.
Secure special tool 11 3 340 in dowel hole (2).
Belt tensioner in installation position.
Remove drive belt.
NOTE:
On vehicles which do not have a power steering pump, a deflecting element (3) is fitted in place of the power steering pump.

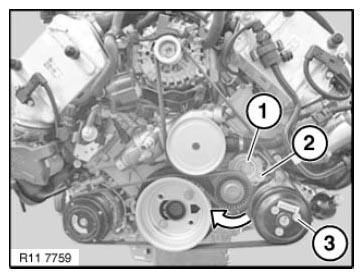

Fig 1: Identifying Pre-Tension Belt Tensioner, Dowel Hole And Power Steering Pump Deflecting Element
IMPORTANT:
Belt tensioner is under high initial spring preload.
Put on the drive belt.
Remove special tool 11 3 340 from dowel hole (2).
Slowly relieve tension on belt tensioner (1).
Installation note:
Make sure drive belt is in correct installation position.

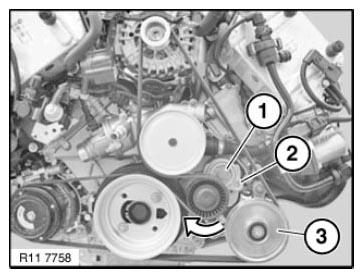

Fig 2: Identifying Pre-Tension Belt Tensioner, Dowel Hole And Power Steering Pump Deflecting Element
Assemble engine.
