11 41 150 Removing and installing/replacing roller chain for oil pump drive (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 201
2 213 485

Necessary preliminary tasks

Drain ENGINE OIL .
Remove FLYWHEEL .
Remove BOTTOM OF OIL SUMP .

NOTE: Support bush (2) is included in delivery specification.
If the crankshaft seal (1) is stored for more than six months without the support sleeve (2), its operational reliability will no longer be guaranteed.

Crankshaft seal (1) must not be reused in this case!

Support bush (2) remains in the crankshaft seal (1) and is used as a slip bush during described installation described below.

Fig 1: Identifying Crankshaft Seal And Bush

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The sealing lip of the crankshaft seal (1) is very sensitive and must not be kinked.

Unscrew nuts (2).

Tightening torque: 11 41 1 AZ .

Remove intake pipe (1).

Installation note:

Replace O-ring.

Fig 2: Identifying Oil Sump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

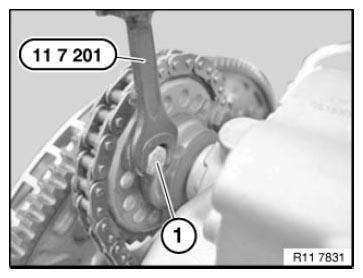

Release all nuts (1) using special tool 11 7 201.

Tightening torque: 11 41 5AZ .

Remove oil pump drive gear.

NOTE: Remove oil pump drive gear.

Fig 3: Removing/Installing Oil Pump Drive Gear Using Special Tool (11 7 201)

Courtesy of BMW OF NORTH AMERICA, INC.

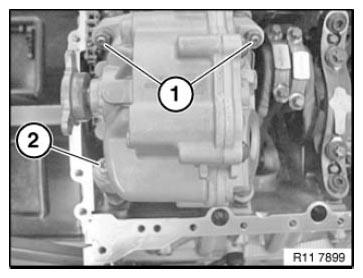

Unscrew nuts (1).

Release screws, remove oil pump (1) with aid of a second person.

Installation note:

Replace screws.

Tightening torque: 11 41 2AZ .

NOTE: Graphic without top oil sump

Fig 4: Identifying Oil Pump And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

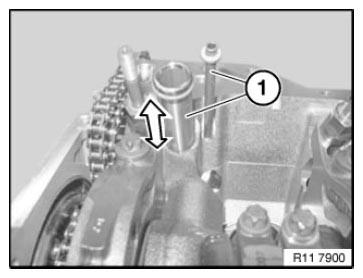

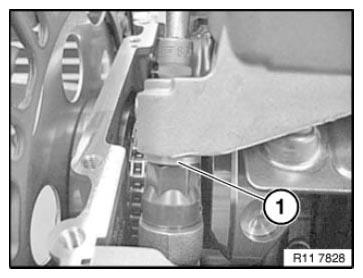

Pull off engine oil line (1) upwards in direction of arrow.

NOTE: Graphic without top oil sump

Fig 5: Connecting/Disconnecting Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

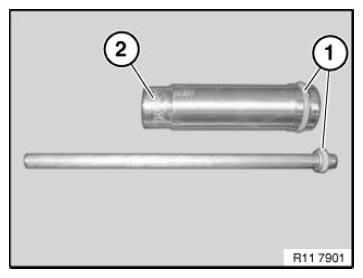

Replace sealing rings (1).

Lightly oil sealing ring 1 (1).

Coat engine oil pipe (2) with suitable lubricant.

Fig 6: Identifying Engine Oil Pipe And Oil Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace O-ring (1) for oil feed line.

Fig 7: Identifying Oil Feed Line O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Fit engine oil pipe (1) in direction of arrow.

Fig 8: Connecting/Disconnecting Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

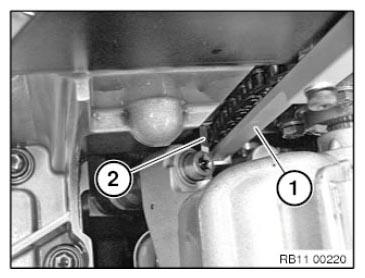

Feed out roller chain (1) via the crankshaft (2).

Installation note:

Mount new roller chain (1).

Install oil pump and adjust.

Fig 9: Identifying Roller Chain And Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure on installed engine

Upper oil sump has been installed.

Position drag pointer (1) of special tool 2 213 485 on oil pump chain.

Fig 10: Positioning Drag Pointer Of Special Tool 2 213 485 On Oil Pump Chain

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Attachment point (1) N63O0 / N63O1/S63O0.

Attachment point (2) N74.

Fig 11: Identifying Attachment Point

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not use force preload timing chain.

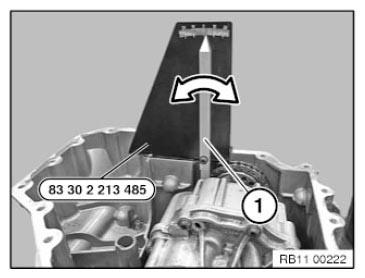

Push drag pointer (1) to the left and right until value has been determined.

Adjustment value 10 mm +2 .

Fig 12: Pushing Drag Pointer To Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust oil pump timing chain.

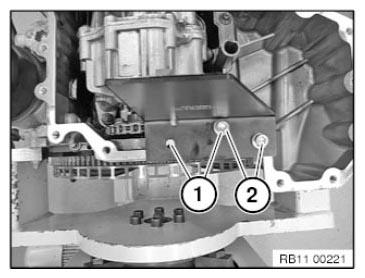

Pretension oil pump adjusting sleeve (1) with a hexagon socket wrench.

Adjustment value 10 mm +2 .

NOTE: Graphic without top oil sump

Fig 13: Identifying Oil Pump Adjusting Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Join and secure screw (2).

Tightening torque 11 41 2 AZ

NOTE: Graphic without top oil sump

Fig 14: Identifying Oil Pump And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check fitting sleeves (1) for damage and correct installation position.

Clean sealing surface (2) so that it is free from oil and grease.

Coat contact edges on separating face along oil sump (see arrows) with DREI BOND 1209 2.1 .

Fig 15: Identifying Fitting Sleeves And Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lightly oil running surface of crankshaft.

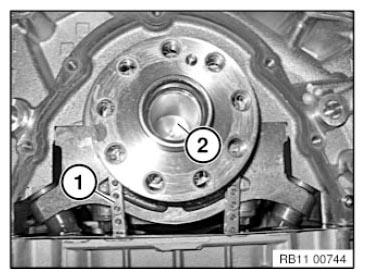

Fit end cover (1) with support bush (2) on crankshaft and push on carefully.

NOTE: Graphic (N62TU).

Fig 16: Identifying Crankshaft End Cover And Support Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (2) and initially tighten without play.

Insert screws (1) and initially tighten without play.

Tighten down bolts (2) from inside outwards.

Tightening torque 11 14 4AZ .

Tighten down screws (1) from inside outwards.

Tightening torque 11 13 2AZ .

Fig 17: Identifying Oil Pump Drive Screws And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
