11 22 510 Removing and installing/replacing flywheel (transmission removed - N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260

Secure flywheel (1) with special tool 11 9 260 .

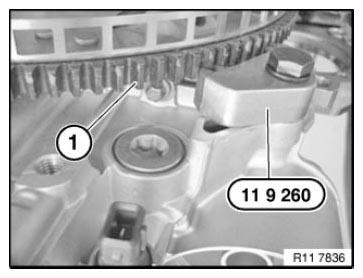

Fig 1: Securing Flywheel Using Special Tool (11 9 260)

G08475300

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean threads on flywheel screws in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel bolts.

Tightening torque 11 22 1AZ .

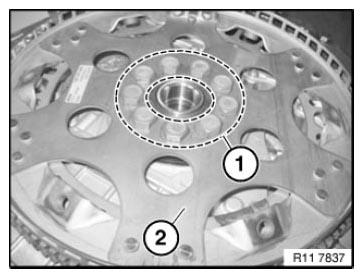

Fig 2: Identifying Flywheel And Screws Area

G08475301

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean threads on flywheel screws in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel bolts.

Tightening torque 11 22 2AZ .
