11 13 020 Removing and installing/replacing lower oil sump section (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove underbody protection at front and rear . See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION .
Release oil drain plug . See 00 00 610 SERVICE - ENGINE OIL (N63) or 11 00... SERVICE - ENGINE OIL (N63) and drain engine oil.
Remove stiffening plate (all-wheel drive vehicle, F12, F13).

Unlock plug connection (1) on oil level sensor and disconnect.

Release screws (2) along line.

Tightening torque 11 13 3AZ .

Remove lower oil sump section (3).

Installation note:

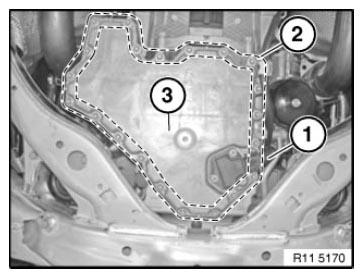

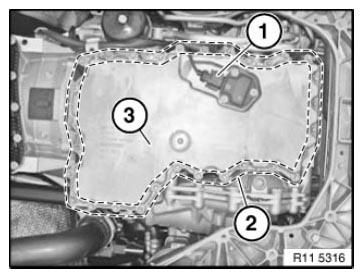

Fig 1: Identifying Plug Connection And Lower Oil Sump Section

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surfaces.

Replace gasket.

Replace screws.

When replacing lower oil sump section:

Convert oil level sensor.

Replace sealing ring.

NOTE: Procedure with four-wheel drive.
